Delta-Q Technologies Corp.

Triangle paddle connector wiring (E-Z-GO, Ryobi)

Product Series: QuiQ, SC-48, Powerwise QE

Article No: FAQ071

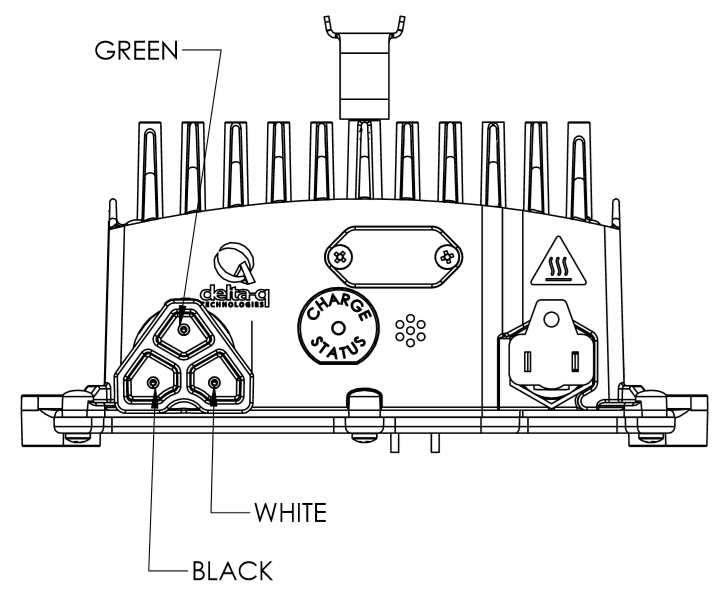

This connector can be found on customized QuiQ, SC-48, and Powerwise QE chargers. See the diagram below for the pin layout as it corresponds to the wire colours inside the paddle.

White: Battery Positive

Black: Battery Negative

Green: Signal
